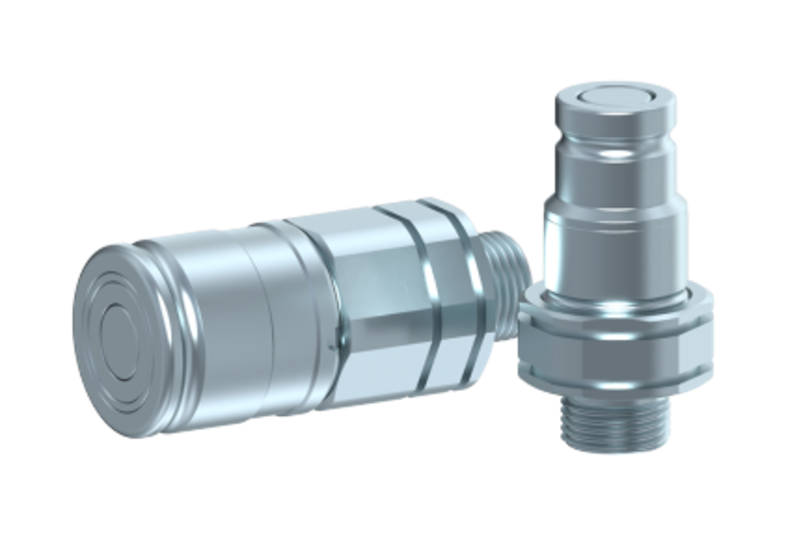

Flat face quick release coupling 15L M22X1,5 female | BG-size 2
€56.53
In stock
Flat face quick release coupling 15L M22X1,5 female | BG-size 2
- Reinforced Flat face quick release couplings that is able to resist more pressure
- Work temperature: -25 ºC to +100 ºC
- Seals: NBR
- Material: steel
Technical specifications:
- Size R1: 15L M22X1,5
- Operating pressure: 350 bar
- ISO-size: 10
- BG-size: 2
- type of coupling: female
- Flow rate: 23 l/min
- Max. flow: 46 l/min
- Size L: 116,3 mm
- Size L1: 73,5 mm
- Size HEX 1: 30 mm
- Size ØE: 28 mm
