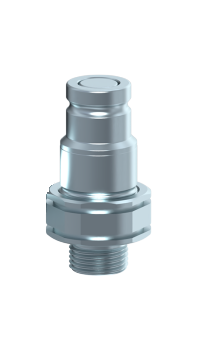

Flat face quick release coupling 15L M22X1,5 male | BG-size 2

Flat face quick release coupling 15L M22X1,5 male | BG-size 2

• Reinforced Flat face quick release couplings that is able to resist more pressure
• Work temperature: -25 ºC to +100 ºC
• Seals: NBR
• Material: steel

Technical specifications:

• Size R1: 15L M22X1,5
• Operating pressure: 350 bar
• ISO-size: 10
• BG-size: 2
• type of coupling: male
• Flow rate: 23 l/min
• Max. flow: 46 l/min
• Size L: 116,3 mm
• Size L2: 58,5
• Size HEX 2: 30 mm
• Size A: 19,8 mm
