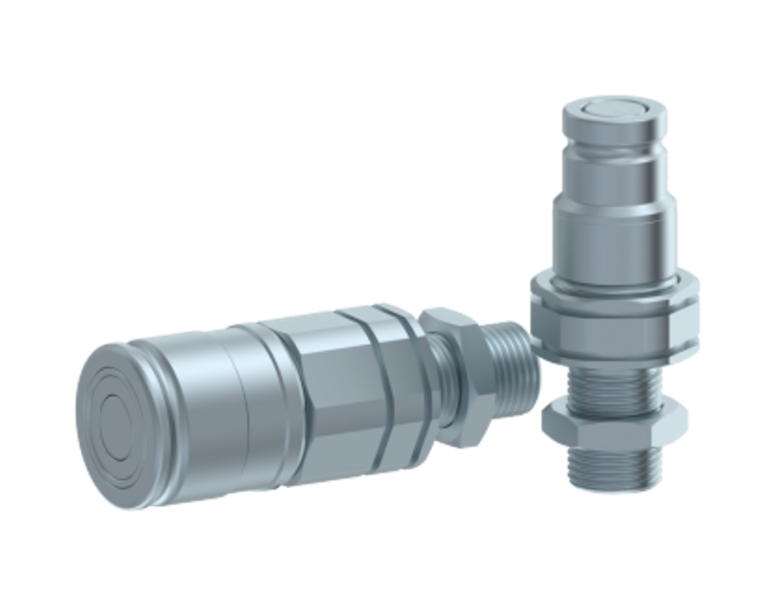

Flat face quick release coupling M16X1.5 Female | BG-size 1

Flat face quick release coupling M16X1.5 Female | BG-size 1

• Material: Steel
• Seals: NBR
• Work temperature: -25 ºC to +100 ºC
• ISO: 16028

Technical specifications:

• Size R1: M16X1.5
• ISO-size:6.3
• BG-size1
• Operating pressure: 400 bar
• Min flow: 12 l/min
• Max flow: 24 l/min
• Size L: 130.8 mm
• Size L1: 75.5 mm
• Size HEX1: 22 mm
• Size A: 16.2 mm
• Size G: 26 mm
