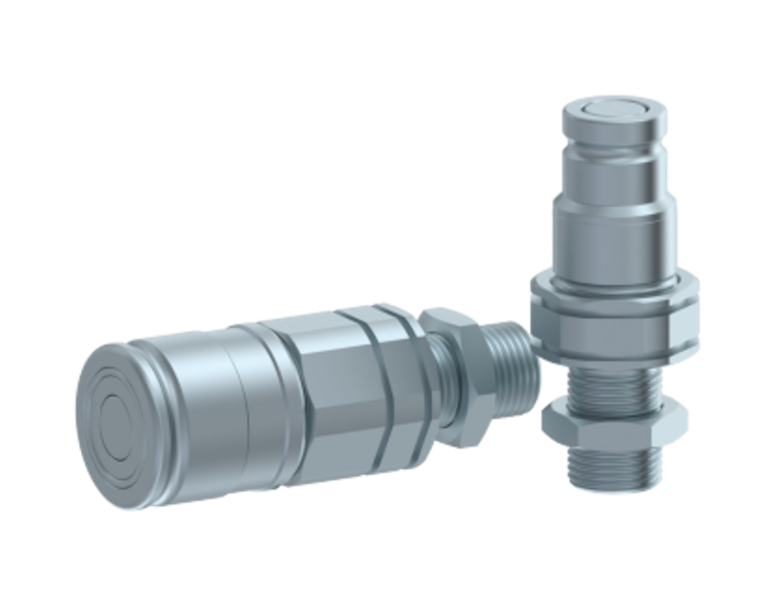

Flat face quick release coupling M22X1.5 Male | BG-size 2

Flat face quick release coupling M22X1.5 Male | BG-size 2

• Material: Steel
• Seals: NBR
• Work temperature: -25 ºC to +100 ºC
• ISO: 16028

Technical specifications:

• Size R1: M22X1.5
• ISO-size:10
• BG-size2
• Operating pressure: 350 bar
• Min flow: 23 l/min
• Max flow: 46 l/min
• Size L: 148.3 mm
• Size L2: 74.5 mm
• Size HEX2: 30 mm
• Size A: 19.8 mm
• Size G: 27 mm
