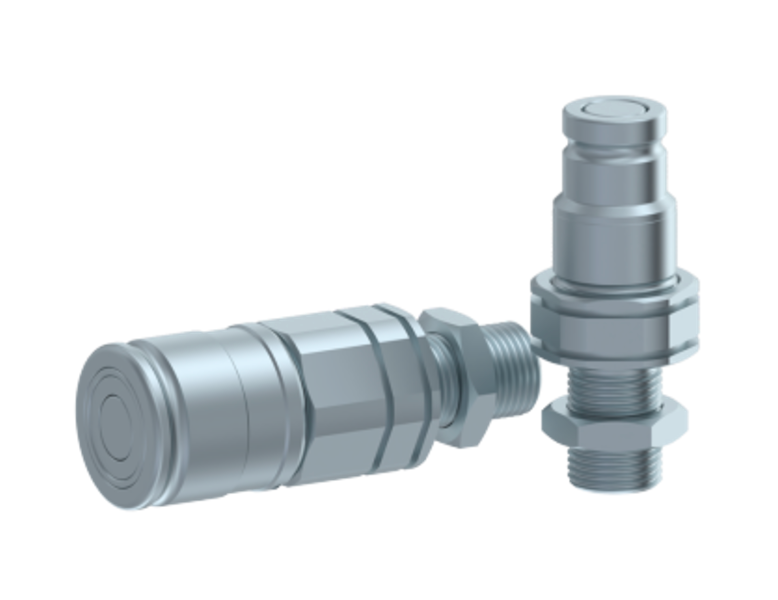

Flat face quick release coupling M26X1.5 Female | BG-size 3

Flat face quick release coupling M26X1.5 Female | BG-size 3

• Material: Steel
• Seals: NBR
• Work temperature: -25 ºC to +100 ºC
• ISO: 16028

Technical specifications:

• Size R1: M26X1.5
• ISO-size:12.5
• BG-size3
• Operating pressure: 350 bar
• Min flow: 45 l/min
• Max flow: 90 l/min
• Size L: 166.2 mm
• Size L1: 97.5 mm
• Size HEX1: 36 mm
• Size A: 24.6 mm
• Size G: 27 mm
