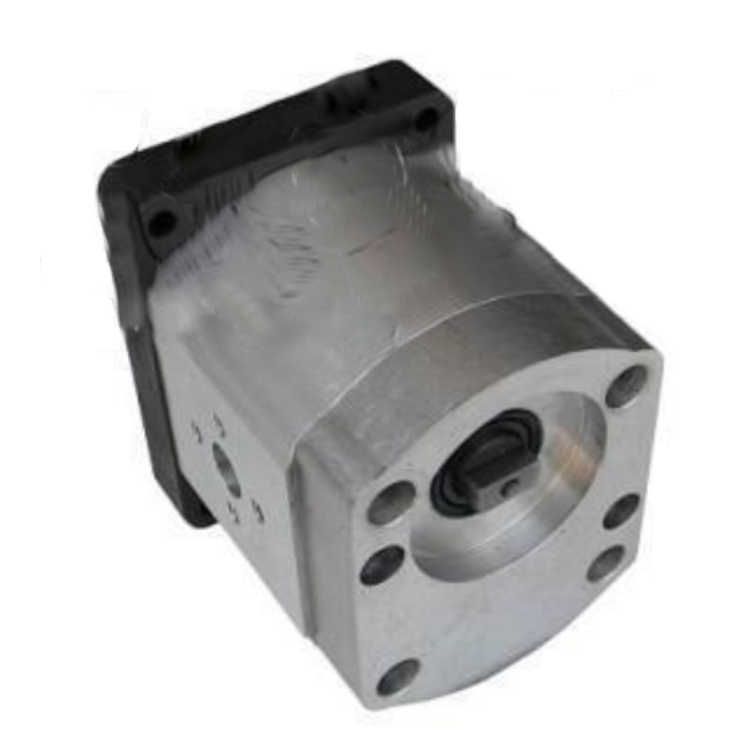

Front pump 15 cc tandem pump left with 1:8 conical shaft, Centering Flange 36.4 mm, group 20+20

Front pump 15 cc tandem pump left with 1:8 conical shaft, Centering Flange 36.4 mm, group 20+20

Front pump for a group 2 tandem pump, together with a rear pump (double pump) or center pump (triple or more) and couplings can be combined to Assemble the desired tandem pump. The relevant parts can easily be assembled into a tandem pump with standard threaded rods. This part is supplied including seals and excluding bolts (concerns standard threaded rods).

Technical specifications:

• Art. no.: 20A15X067
• Direction of rotation: left
• Pump type: gear pump
• shaft: 1:8 conical
• Centering Flange: 36.4mm
• Cc per revolution: 15
• Flow Rate (1500 RPM): 21.60 l/min
• Flow Rate (max. RPM): 36.00 l/min
• Max. Pressure at P: 250 bar
• Max. revolutions: 2500 RPM
• Dimension A: 51mm
• Dimension B: 104.1mm

Inlet

• Dimension E: 39.7 mm
• Dimension F: 19mm
• Dimension D: M8-6H

Outlet

• Dimension E: 30.2mm
• Dimension F: 14.2mm
• Dimension D: M6-6H
