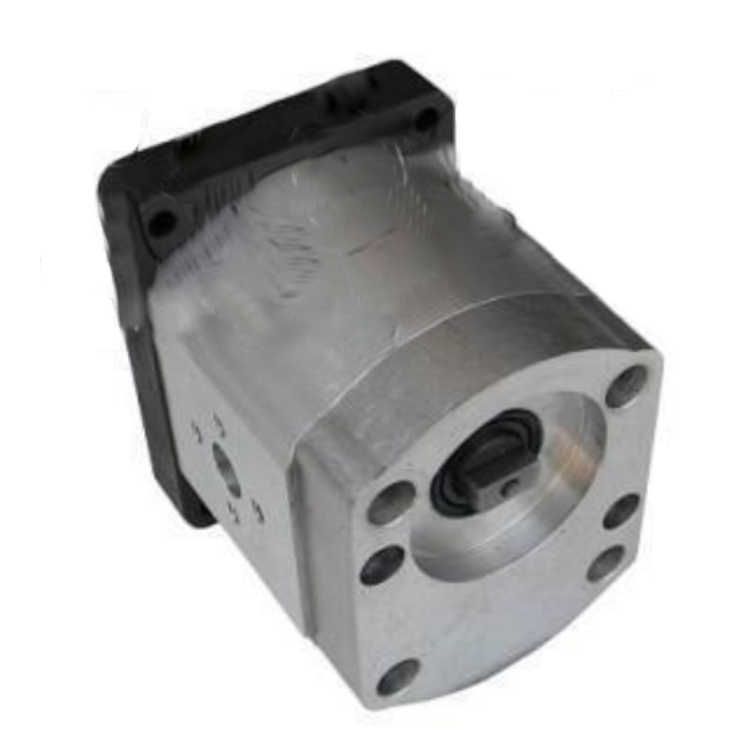

Front pump 22 cc tandem pump left with 1:8 conical shaft, Centering Flange 36.4 mm, group 20+20

Front pump 22 cc tandem pump left with 1:8 conical shaft, Centering Flange 36.4 mm, group 20+20

Front pump for a group 2 tandem pump, together with a rear pump (double pump) or center pump (triple or more) and couplings can be combined to Assemble the desired tandem pump. The relevant parts can easily be assembled into a tandem pump with standard threaded rods. This part is supplied including seals and excluding bolts (concerns standard threaded rods).

Technical specifications:

• Art. no.: 20A22X067
• Direction of rotation: left
• Pump type: gear pump
• shaft: 1:8 conical
• Centering Flange: 36.4mm
• Cc per revolution: 22
• Flow Rate (1500 RPM): 31.68 l/min
• Flow Rate (max. RPM): 42.24 l/min
• Max. Pressure at P: 180 bar
• Max. revolutions: 2000RPM
• Dimension A: 57mm
• Dimension B: 115.7mm

Inlet

• Dimension E: 39.7 mm
• Dimension F: 19mm
• Dimension D: M8-6H

Outlet

• Dimension E: 30.2mm
• Dimension F: 14.2mm
• Dimension D: M6-6H
