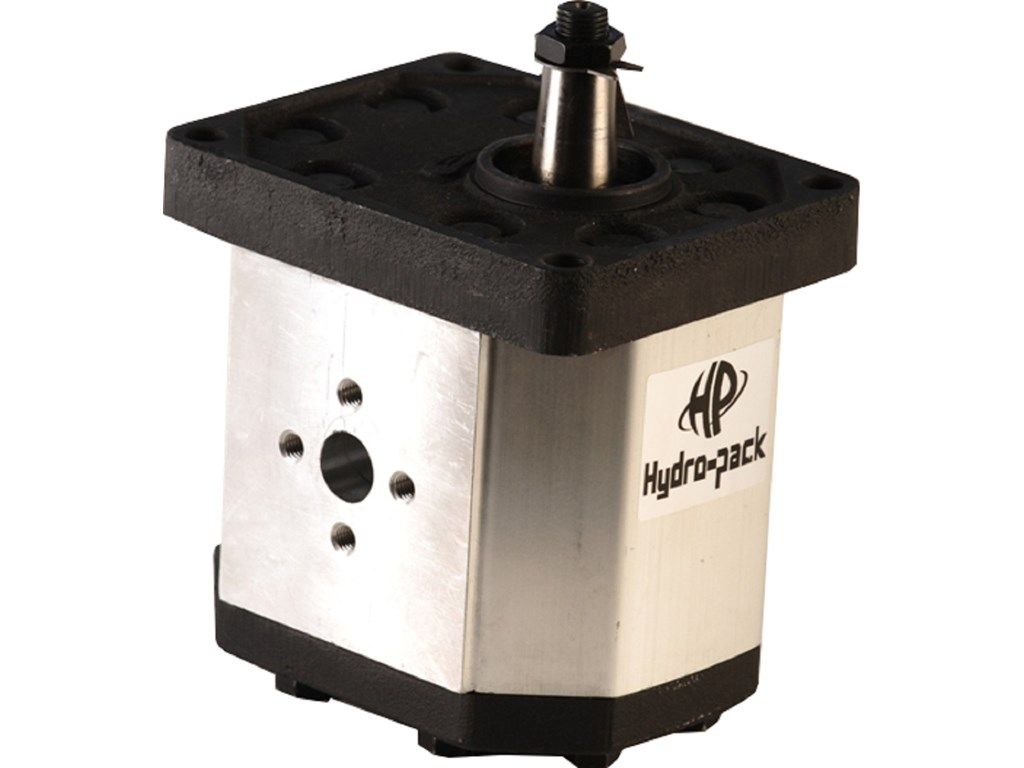

Front pump 25 cc tandem pump left with 1:8 conical shaft, Centering Flange 50.8 mm group 30+20

Front pump 25 cc tandem pump left with 1:8 conical shaft, Centering Flange 50.8 mm group 30+20

Front pump for a group 3 tandem pump, together with a group 2 rear pump (double pump) or group 2 center pump (triple or more) and couplings can be combined to Assemble the desired tandem pump. The relevant parts can easily be assembled into a tandem pump with standard threaded rods. This part is supplied including seals and excluding bolts (concerns standard threaded rods).

Technical specifications:

• Art. no.: 30A25X198
• Direction of rotation: left
• Pump type: gear pump
• shaft: 1:8 conical
• Centering Flange: 50.8mm
• Cc per revolution: 25
• Flow Rate (1500 RPM): 35.3 l/min
• Flow Rate (max. RPM): 70.5 l/min
• Max. Pressure at P: 250 bar
• Max. revolutions: 3000 RPM
• Dimension A: 58.3mm
• Dimension B: 119.1mm

Inlet

• Dimension E: 40mm
• Dimension F: 19mm
• Dimension d: M8

Outlet

• Dimension E: 40mm
• Dimension F: 19mm
• Dimension d: M8
