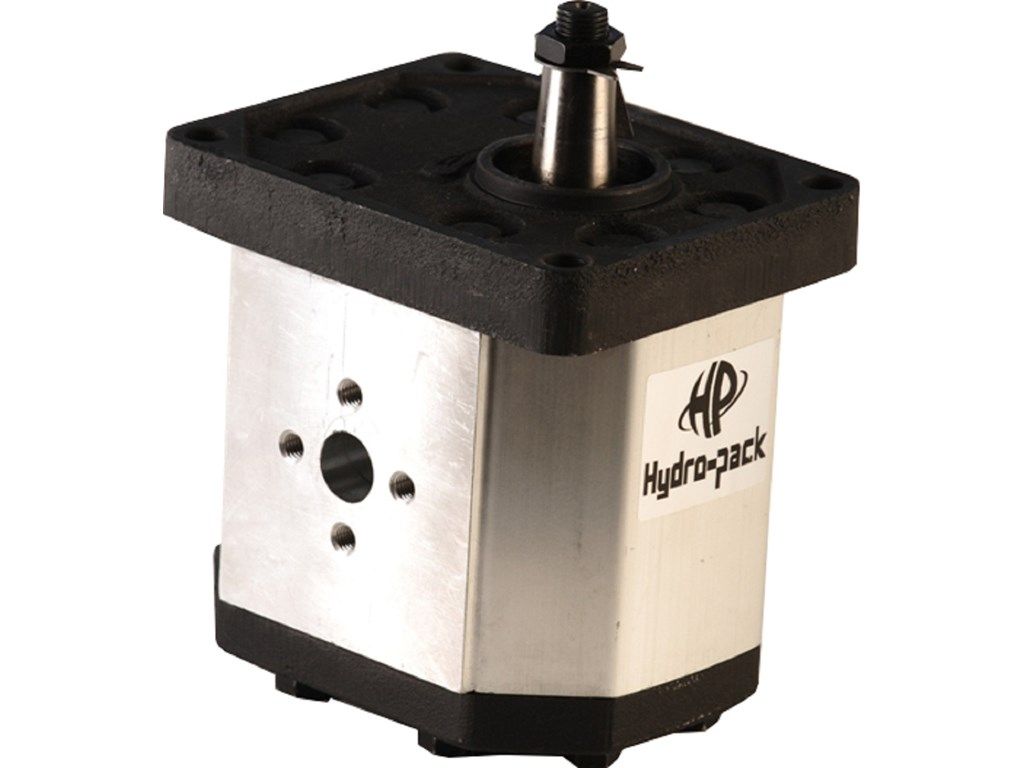

Front pump 55 cc tandem pump right with 1:8 conical shaft, Centering Flange 50.8 mm group 30+20

Front pump 55 cc tandem pump right with 1:8 conical shaft, Centering Flange 50.8 mm group 30+20

Front pump for a group 3 tandem pump, together with a group 2 rear pump (double pump) or group 2 center pump (triple or more) and couplings can be combined to Assemble the desired tandem pump. The relevant parts can easily be assembled into a tandem pump with standard threaded rods. This part is supplied including seals and excluding bolts (concerns standard threaded rods).

Technical specifications:

• Art. no.: 30C55X198
• Direction of rotation: right
• Pump type: gear pump
• shaft: 1:8 conical
• Centering Flange: 50.8mm
• Cc per revolution: 55
• Flow Rate (1500 RPM): 78.4 l/min
• Flow Rate (max. RPM): 91.4 l/min
• Max. Pressure at P: 200 bar
• Max. revolutions: 1750 RPM
• Dimension A: 76.7mm
• Dimension B: 155.9mm

Inlet

• Dimension E: 51mm
• Dimension F: 27mm
• Dimension D: M10

Outlet

• Dimension E: 40mm
• Dimension F: 19mm
• Dimension D: M8
