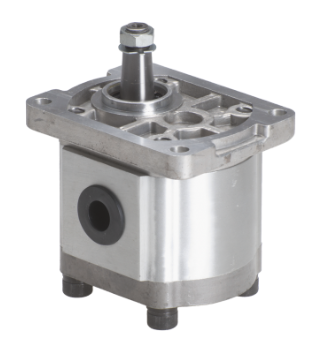

Gear pump 12 cc left BSP connection with 1:8 conical shaft group 20

Gear pump 12 cc left BSP connection with 1:8 conical shaft group 20

• Unit: per piece

Technical specifications:

• Pump group: 20
• Cc per revolution: 12 cc
• Direction of rotation: left
• Pump: gear pump
• Design: pump with aluminum pump housing
• shaft: conical shaft 1:8
• Connection R1: 1/2" BSP
• Connection R2: 1/2" BSP
• Dimension A: 108 mm
• Dimension B: 49.5 mm
• Max. pressure: 250 bar
• Max. peak pressure: 300 bar
• Max. number of revolutions: 3500
