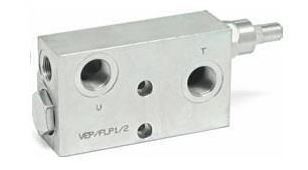

High pressure low pressure switching valve VEP FLP 1/2"
€106.11
In stock
High pressure low pressure switching valve VEP FLP ½”
- Seals: buna N
- Internal components: hardened steel
- Housing: galvanized steel
Technical specifications:
- Type: VEP FLP 1/2"
- Maximum volume flow AP: 15 l/min
- Maximum volume flow BP: 45 l/min
- Maximum volume flow T: 55 l/min
- Maximum pressure AP: 350 bar
- Maximum pressure BP: 80 bar
- Weight: 2.5 kg
Drawing dimensions:
| Size: | Size: | ||
| AP | 3/8" BSP | L7 | 25 |
| BP | 11 | L8 | 17 |
| M | 1/4" BSP | H1 | 24 |
| TU | 1/2" BSP | H | 70 |
| L | 120 | ||
| L1 | 170 | ||
| L2 | 61 | ||
| L3 | 30 | ||
| L4 | 23 | ||
| L5 | 36 | ||
| L6 | 21 |
