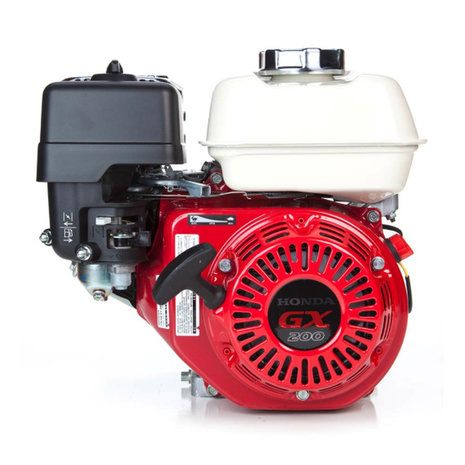

Honda GX200UT2 QX4 19.05mm shaft petrol engine with oil protection

Honda GX200UT2 QX4 19.05mm shaft petrol engine with oil protection

This type is standard equipped with a recoil starter and an oil protection.

Technical features:

• Brand: Honda
• Model: GX200UT2 QX4
• Engine Type: air-cooled OHV gasoline engine with horizontal output shaft
• Axle size: 19.05mm
• Cylinder liner material: cast iron
• Inclination cylinder: 25°
• Bore x Stroke: 68 x 54mm
• Displacement: 196 cm3
• Compression: 8.5:1
• Mains power: 5.5 hp (4.1 kW) / 3600 rpm
• Continuous Rated Power: 4.4 hp (3.3 kW) - 3600 rpm / 5 hp (3.7 kW) - 3600 rpm
• just. Torque: 12.4 Nm / 2500 rpm
• Ignition: electronic ignition
• Starting System: Recoil Starter
• Tank capacity: 3.1 litres
• Fuel consumption at continuous nom. power: 1.7 l/h - 3600 rpm
• Engine oil capacity: 0.6 l
• Dimensions(LxWxH): 321 x 376 x 346mm
• Dry weight: 16.1 kg
