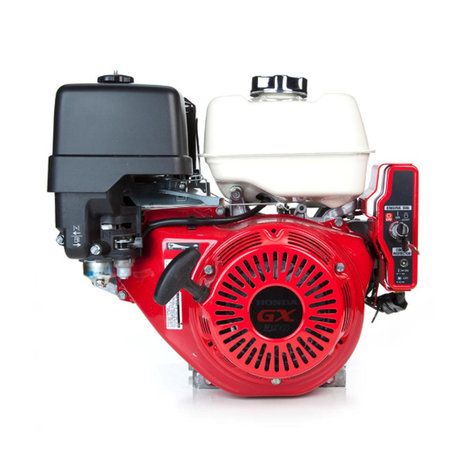

Honda GX390 QX E4 - 25.4 mm shaft petrol engine with oil protection and control box

Honda GX390 QX E4 - 25.4 mm shaft petrol engine with oil protection and control box

This type is standard equipped with an electric starter with 1A charging coil, control box and an oil protection.

Technical features:

• Brand: Honda
• Model: GX390 QX E4
• Engine type: air-cooled OHV petrol engine with horizontal output shaft
• Axle size: 25.4mm
• Cylinder liner material: cast iron
• Inclination cylinder: 25°
• Bore x Stroke: 88 x 64mm
• Displacement: 389 cm3
• Compression: 8.2:1
• Mains power: 11.7 hp (8.7 kW) / 3600 rpm
• Continuous Rated Power: 8.6 hp (6.4 kW) - 3600 rpm / 9.4 hp (7 kW) - 3600 rpm
• just. Torque: 26.5 Nm / 2500 rpm
• Ignition: digital DCI with variable ignition timing
• Starting System: Electronic
• Tank capacity: 6.1 l
• Fuel consumption at continuous nom. power: 3.5 l/h - 3600 rpm
• Engine oil capacity: 1.1 l
• Dimensions(LxWxH): 406 x 460 x 448mm
• Dry weight: 31.7 kg
