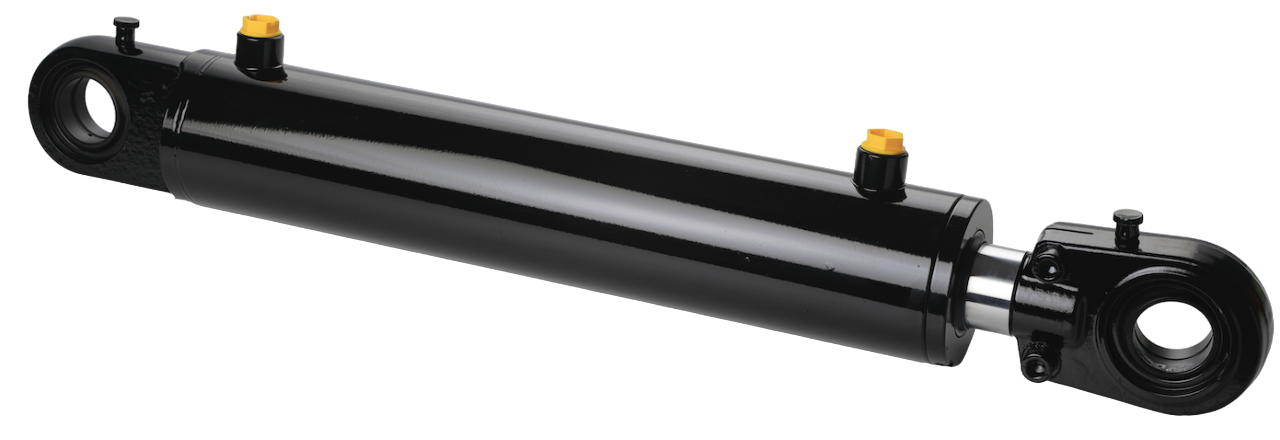

Hydraulic cylinder 100x50x700 double-acting with adjustable spherical bearings

€395.08

In stock

Skip to the beginning of the images gallery

Hydraulic cylinder 100x50x700 double-acting with adjustable spherical bearings

This high-quality hydraulic cylinder with articulated eyes offers options to mount the cylinder in a place where it can move easily. This makes this cylinder even more widely applicable.

Technical specifications:

Dimension A: 50mm
Dimension B: 100mm
Dimension C: 35mm
Dimension D: 40mm
Dimension E: 1025mm
Dimension F: 69mm
Dimension G: 115mm
Dimension H: 118mm
Dimension I: 85mm
Dimension J: 105mm
Dimension K: 60mm
Dimension L: 17mm
Port: 1/2"BSP
Volume: 5.50 L
Compressive force at 100 bar: 7854 kg
Tensile force at 100 bar: 5890 kg
Weight: 40.45kg

*For sending cylinders of 30kg or more, we charge a one-time additional shipping fee per shipment

*This is a custom-made product and cannot be returned
