Hydraulic cylinder 32x20x50 double-acting with adjustable spherical bearings
€101.18
In stock

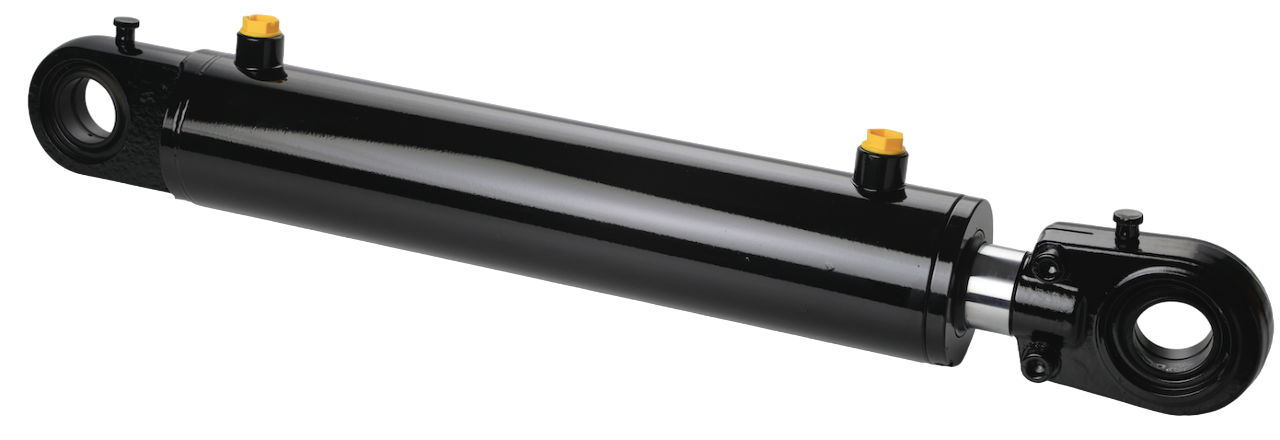

Hydraulic cylinder 32x20x50 double-acting with adjustable spherical bearings
This high-quality hydraulic cylinder with articulated eyes offers options to mount the cylinder in a place where it can move easily. This makes this cylinder even more widely applicable.
Technical specifications:
- Dimension A: 20mm
- Dimension B: 32mm
- Dimension C: 19mm
- Dimension D: 20mm
- Dimension E: 260mm
- Dimension F: 38mm
- Dimension G: 40mm
- Dimension H: 67mm
- Dimension I: 50mm
- Dimension J: 65mm
- Dimension K: 36mm
- Dimension L: 9.5mm
- Port: 1/4"BSP
- Volume: 0.04 L
- Compressive force at 100 bar: 804 kg
- Tensile force at 100 bar: 490 kg
- Weight: 2.08kg
