Hydraulic cylinder 40x25x100 double-acting with adjustable spherical bearings
€117.50
In stock

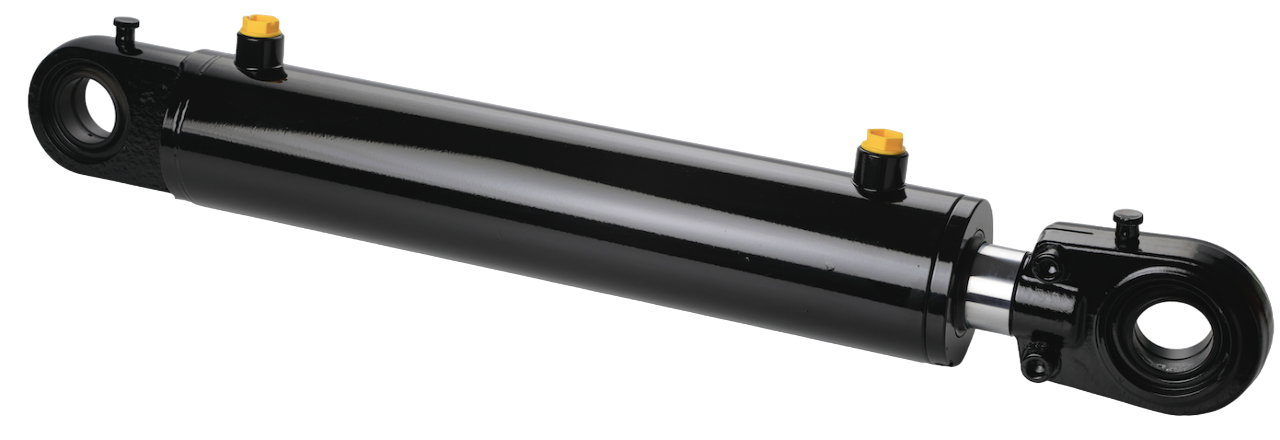

Hydraulic cylinder 40x25x100 double-acting with adjustable spherical bearings
This high-quality hydraulic cylinder with articulated eyes offers options to mount the cylinder in a place where it can move easily. This makes this cylinder even more widely applicable.
Technical specifications:
- Dimension A: 25mm
- Dimension B: 40mm
- Dimension C: 19mm
- Dimension D: 20mm
- Dimension E: 305mm
- Dimension F: 38mm
- Dimension G: 50mm
- Dimension H: 70mm
- Dimension I: 50mm
- Dimension J: 68mm
- Dimension K: 40mm
- Dimension L: 15mm
- Port: 3/8"BSP
- Volume: 0.13 L
- Compressive force at 100 bar: 1257 kg
- Tensile force at 100 bar: 766 kg
- Weight: 3.34kg
