Hydraulic cylinder 50x25x100 double-acting with adjustable spherical bearings
€114.90
In stock

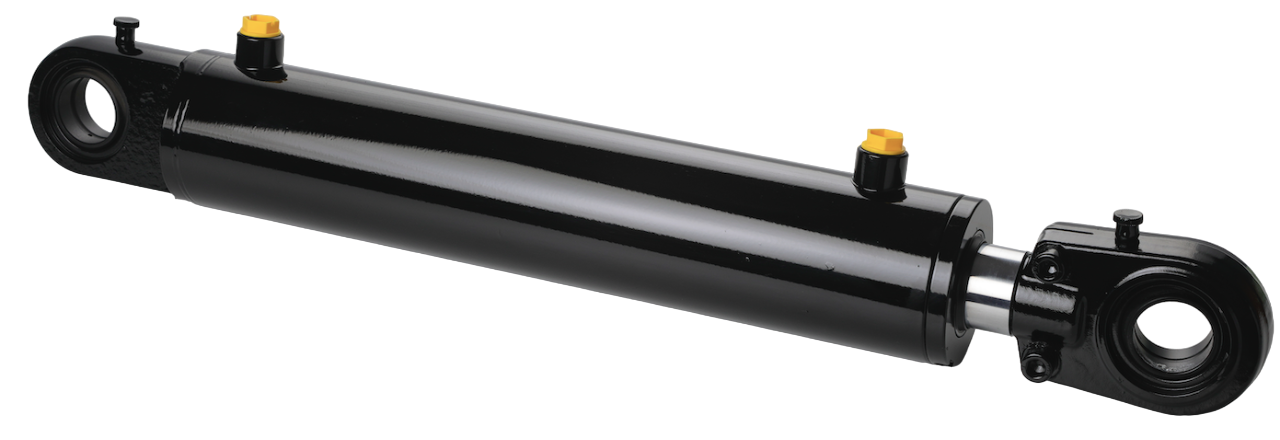

Hydraulic cylinder 50x25x100 double-acting with adjustable spherical bearings
This high-quality hydraulic cylinder with articulated eyes offers options to mount the cylinder in a place where it can move easily. This makes this cylinder even more widely applicable.
Technical specifications:
- Dimension ØA: 25mm
- Dimension ØB:50mm
- Dimension Z (stroke): 100mm
- Dimension E: 320mm
- Dimension C: 23mm
- Dimension D: 25mm
- Dimension F: 45mm
- Dimension G: 60mm
- Dimension H: 71mm
- Dimension I: 50mm
- Dimension J: 76mm
- Dimension K: 43mm
- Dimension L: 15 mm
- Port: 3/8"BSP
- Volume: 0.20 L
- Weight: 4.36kg
