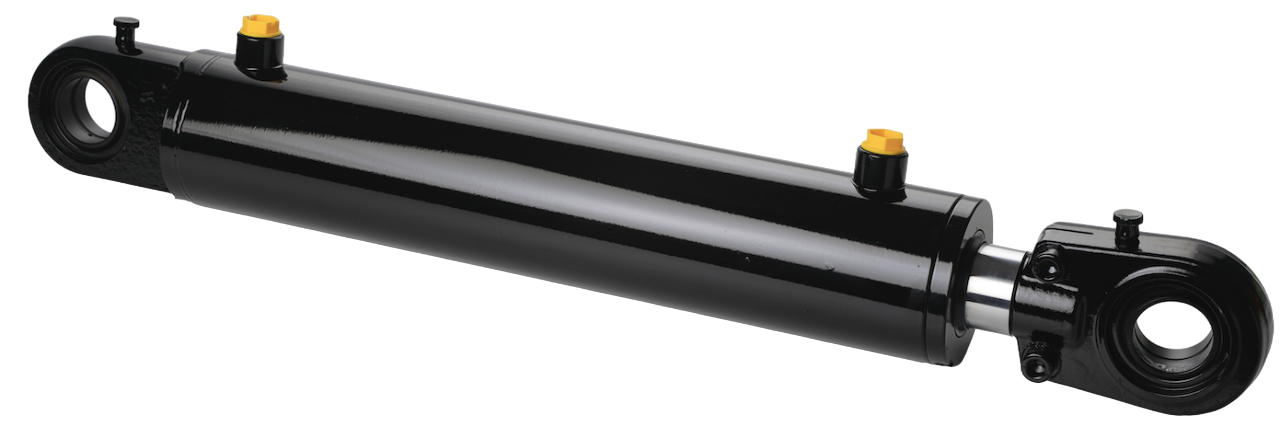

Hydraulic cylinder 60x30x500 double-acting with adjustable spherical bearings
€159.00
In stock
Hydraulic cylinder 60x30x500 double-acting with adjustable spherical bearings
This high-quality hydraulic cylinder with articulated eyes offers options to mount the cylinder in a place where it can move easily. This makes this cylinder even more widely applicable.
Technical specifications:
- Dimension A: 30mm
- Dimension B: 60mm
- Dimension C: 28mm
- Dimension D: 30mm
- Dimension E: 740mm
- Dimension F: 51mm
- Dimension G: 70mm
- Dimension H: 83mm
- Dimension I: 60mm
- Dimension J: 83mm
- Dimension K: 45mm
- Dimension L: 15mm
- Port: 3/8"BSP
- Volume: 1.41 L
- Compressive force at 100 bar: 2827 kg
- Tensile force at 100 bar: 2120 kg
- Weight: 11.59kg
