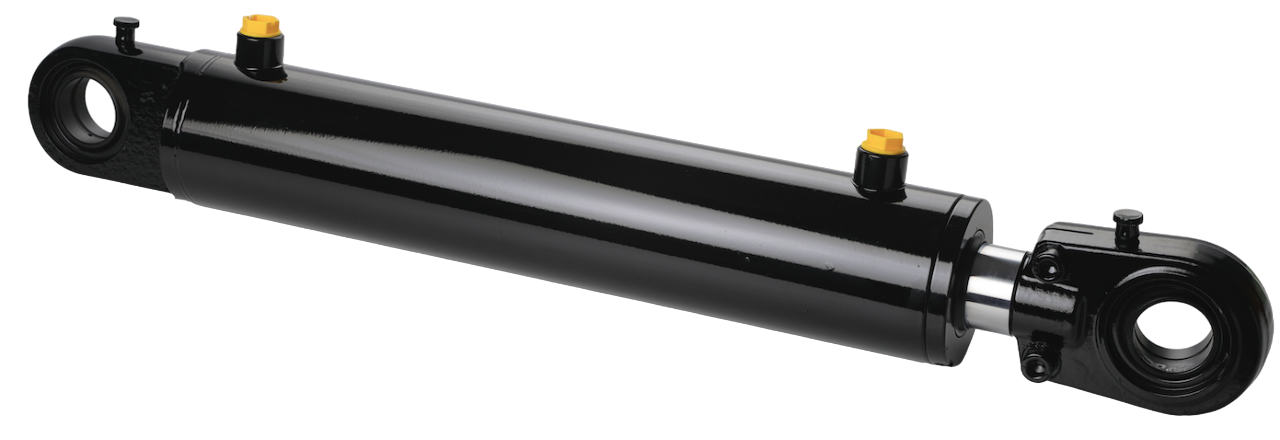

Hydraulic cylinder 80x40x200 double-acting with adjustable spherical bearings
€187.34
In stock
Hydraulic cylinder 80x40x200 double-acting with adjustable spherical bearings
This high-quality hydraulic cylinder with articulated eyes offers options to mount the cylinder in a place where it can move easily. This makes this cylinder even more widely applicable.
Technical specifications:
- Dimension A: 40mm
- Dimension B: 80mm
- Dimension C: 30mm
- Dimension D: 35mm
- Dimension E: 480mm
- Dimension F: 61mm
- Dimension G: 90mm
- Dimension H: 93mm
- Dimension I: 70mm
- Dimension J: 95mm
- Dimension K: 54mm
- Dimension L: 15mm
- Port: 3/8"BSP
- Volume: 1.01 L
- Compressive force at 100 bar: 5027 kg
- Tensile force at 100 bar: 3770 kg
- Weight: 12.95kg
