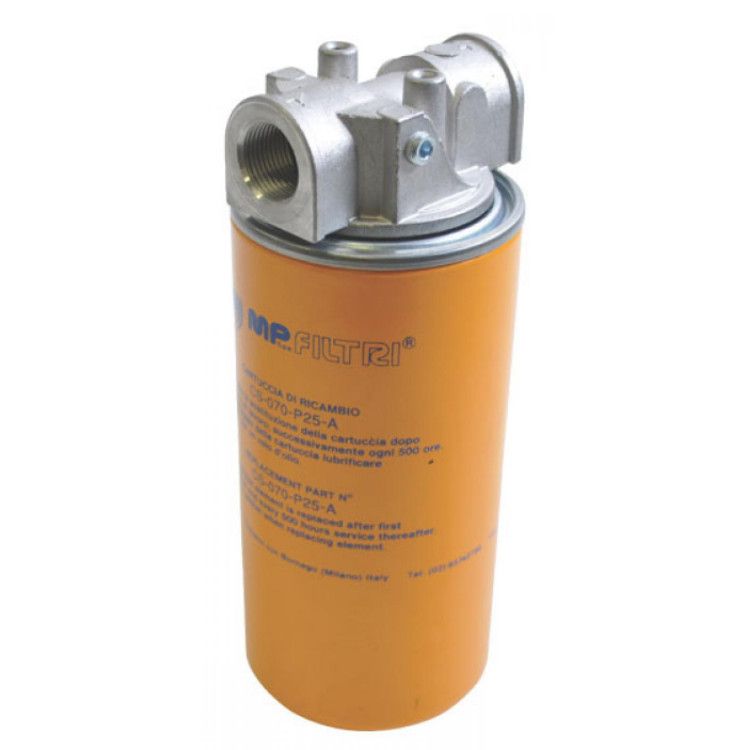

Hydraulic MPS100 return filter 1" 1/4 BSP 10µm glass fiber

Hydraulic MPS100 return filter 1" 1/4 BSP 10µm fiber optic

Technical specifications:

• Type: return filter
• Packaging: return filter housing and filter
• Temperature range: -25°C to +110°c
• Unit: per piece

Technical specifications:

• Brand: MP Filtri
• Connection: 1" 1/4 BSP
• Flow: filter type dependent
• Bottom mounting: pipe construction - spin on filter
• Diameter: 129 mm
• Filter fineness: 10 µm
• Filtration: from the inside out
• Height: 241 mm
• Applicable filter elements: CS100
• Seal material: nitrile rubber (NBR), viton on request
• House material: aluminum
• OEM number: KITMPS100RA10
