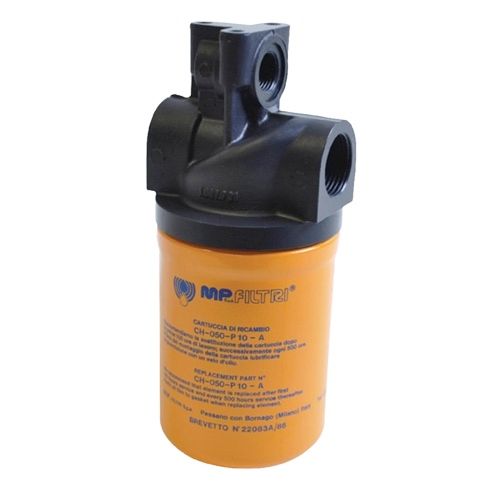

Hydraulic MSH150 return filter 1" 1/2 BSP 10µm glass fiber

Hydraulic MSH150 return filter 1" 1/2 BSP 10µm fiber optic

Technical specifications:

• Type: return filter
• Packaging: return filter housing and filter
• Scope of application: as a line return filter or pressure filter for low pressure systems
• Temperature range: -25°C to +110°c
• Unit: per piece

Technical specifications:

• Brand: MP Filtri
• Connection: 1" BSP
• Flow: 140 l/min
• Working pressure: 35 bar
• Flow: filter type dependent
• Bottom mounting: pipe construction - spin on filter
• Outer diameter: 127 mm
• Distance H1: 385 mm
• Filter fineness: 10 µm
• Filtration: from outside inside
• Height: 355 mm
• Applicable filter elements: CH150
• Seal material: nitrile rubber (NBR), viton on request
• House material: aluminum
• OEM number: MSH150BAG1A10
