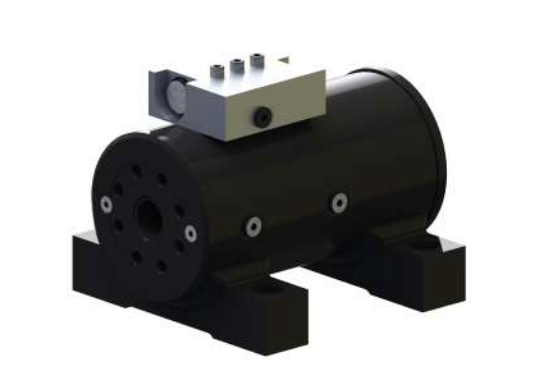

Hydraulic rotary actuator 1600Nm 180 degrees with foot mounting

Hydraulic rotary actuator 900Nm 180 degrees with foot mounting

• Hydraulic rotating cylinder

Technical specifications:

• Drive torque @21MPs: 1600 Nm
• Holding torque @21MPa: 4400 Nm
• Max. axial load: 1000 kg
• Max. radial load: 4190 kg
• Torque: 1600 Nm
• Rotation angle: 180°
• Mounting holes in shaft
• Including balancing valve / brake valve steel
• Move 180°: 436
• D1 shaft and end flange diameter: 142mm
• D2 housing diameter: 139mm
• Weight: 30 kg
• Specifications photo 2 & 3: model 16
