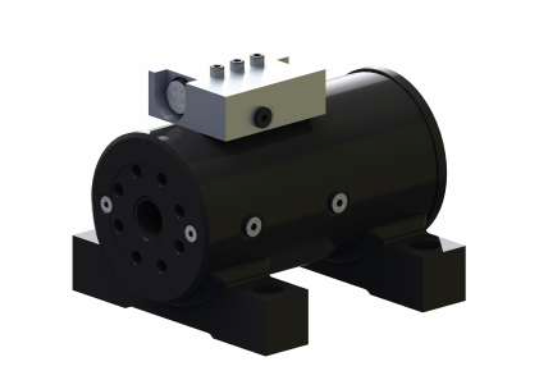

Hydraulic rotary actuator 24000Nm 180 degrees with foot mounting

Hydraulic rotary actuator 24000Nm 180 degrees with foot mounting

• Hydraulic rotating cylinder

Technical specifications:

• Drive torque @21MPs: 24000 Nm
• Holding torque @21MPa: 59000 Nm
• Max. axial load: 8200 kg
• Max. radial load: 11800 kg
• Torque: 24000 Nm
• Rotation angle: 180°
• Mounting holes in shaft
• Including balancing valve / brake valve steel
• Move 180°: 6000
• D1 shaft and end flange diameter: 310mm
• D2 housing diameter: 305mm
• Weight: 360 kg
• Specifications photo 2 & 3: model 240
