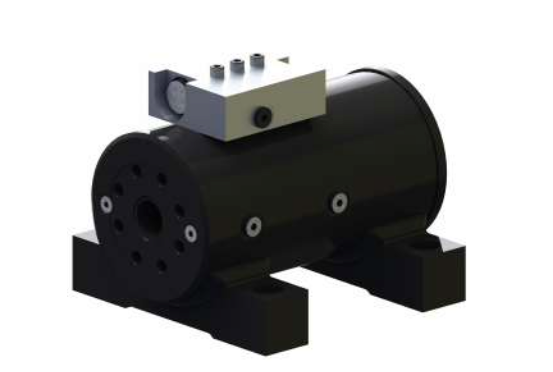

Hydraulic rotary actuator 2680Nm 180 degrees with foot mounting

Hydraulic rotary actuator 2680Nm 180 degrees with foot mounting

• Hydraulic rotating cylinder

Technical specifications:

• Drive torque @21MPs: 2680 Nm
• Holding torque @21MPa: 7100 Nm
• Max. axial load: 1400 kg
• Max. radial load: 5580 kg
• Torque: 2680 Nm
• Rotation angle: 180°
• Mounting holes in shaft
• Including balancing valve / brake valve steel
• Move 180°: 726
• D1 shaft and end flange diameter: 170mm
• D2 housing diameter: 165mm
• Weight: 51 kg
• Specifications photo 2 & 3: model 27
