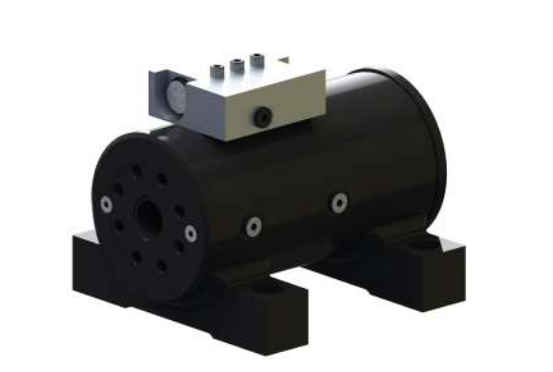

Hydraulic rotary actuator 43000Nm 180 degrees with foot mounting
€14,000.00
In stock
Hydraulic rotary actuator 43000Nm 180 degrees with foot mounting
- Hydraulic rotating cylinder
Technical specifications:
- Drive torque @21MPs: 43000 Nm
- Holding torque @21MPa: 110000 Nm
- Max. axial load: 8200 kg
- Max. radial load: 11800 kg
- Torque: 43000 Nm
- Rotation angle: 180°
- Mounting holes in shaft
- Including balancing valve / brake valve steel
- Move 180°: 10200
- D1 shaft and end flange diameter: 310mm
- D2 housing diameter: 305mm
- Weight: 500 kg
- Specifications photo 2 & 3: model 430
