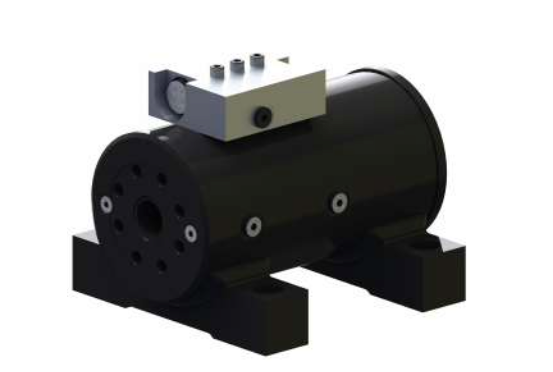

Hydraulic rotary actuator 500Nm 180 degrees with foot mounting

Hydraulic rotary actuator 500NM 180 degrees with foot mounting

• Hydraulic rotating cylinder

Technical specifications:

• Drive torque @21MPs: 500 Nm
• Holding torque @21MPa: 1300 Nm
• Max. axial load: 500 kg
• Max. radial load: 1380 kg
• Torque: 500 Nm
• Mounting holes in shaft and flange
• Including balancing valve / brake valve aluminum
• Move 180°: 132
• D1 shaft and end flange diameter: 104mm
• D2 housing diameter: 101mm
• Weight: 12.5kg
• Specifications photo 2 & 3: model 5
