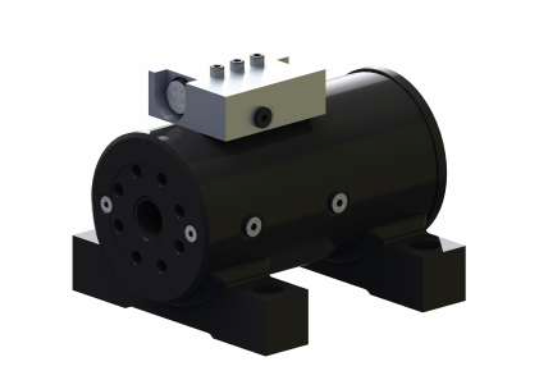

Hydraulic rotary actuator 7300Nm 180 degrees with foot mounting
€5,450.00
In stock
Hydraulic rotary actuator 7300Nm 180 degrees with foot mounting
- Hydraulic rotating cylinder
Technical specifications:
- Drive torque @21MPs: 4200 Nm
- Holding torque @21MPa: 18000 Nm
- Max. axial load: 3600 kg
- Max. radial load: 5000 kg
- Torque: 7300 Nm
- Rotation angle: 180°
- Mounting holes in shaft
- Including balancing valve / brake valve steel
- Move 180°: 1870
- D1 shaft and end flange diameter: 209mm
- D2 housing diameter: 203mm
- Weight: 110 kg
- Specifications photo 2 & 3: model 73
