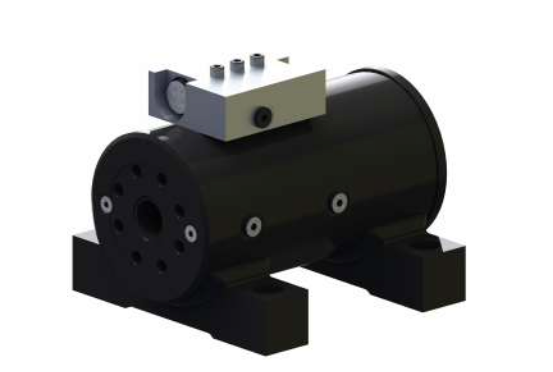

Hydraulic rotary actuator 900Nm 160 degrees with foot mounting

Hydraulic rotary actuator 900Nm 160 degrees with foot mounting

• Hydraulic rotating cylinder

Technical specifications:

• Drive torque @21MPs: 900 Nm
• Holding torque @21MPa: 2400 Nm
• Max. axial load: 680 kg
• Max. radial load: 2130 kg
• Torque: 900 Nm
• Rotation angle: 160°
• Mounting holes in shaft
• Including balancing valve / brake valve aluminum
• Move 180°: 234
• D1 shaft and end flange diameter: 117 mm
• D2 housing diameter: 114 mm
• Weight: 17 kg
• Specifications photo 2 & 3: model 9
