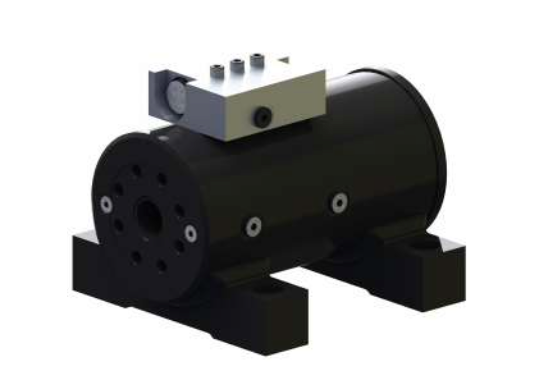

Hydraulic rotary actuator 900Nm 180 degrees with foot mounting
€1,290.00
In stock
Hydraulic rotary actuator 900Nm 180 degrees with foot mounting
- Hydraulic rotating cylinder
Technical specifications:
- Drive torque @21MPs: 900 Nm
- Holding torque @21MPa: 2400 Nm
- Max. axial load: 680 kg
- Max. radial load: 2130 kg
- Torque: 900 Nm
- Rotation angle: 180°
- Mounting holes in shaft
- Including balancing valve / brake valve steel
- Move 180°: 234
- D1 shaft and end flange diameter: 117 mm
- D2 housing diameter: 114 mm
- Weight: 17 kg
- Specifications photo 2 & 3: model 9
