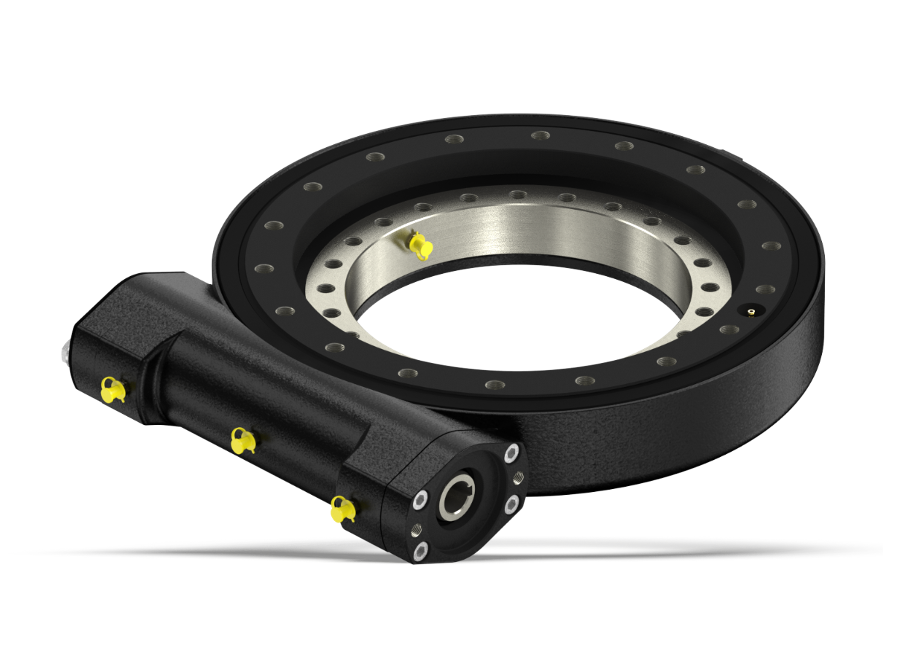

Hydraulic slewing ring 1:121 outer diameter 770mm

Hydraulic slewing ring 1:121 outer diameter 770mm

• Suitable for MP series and MR series hydraulic motors

Technical specifications:

• Torque ratio: 121:1
• Efficientë`;ntion: 40%
• Self-braking: Yes
• freedom of play: `;<`;0.15º`;
• Maximum torque: 15360 Nm
• Rated torque: 15360 Nm
• Holding torque: 70 kNm
• Tipping moment: 540 kNm
• Radial static load: 1600 kN
• Axial static load: 4000 kN
• Radial dynamic load: 400 kN
• Axial dynamic load: 1200 kN
• Outer diameter: 770mm
• European manufacture
