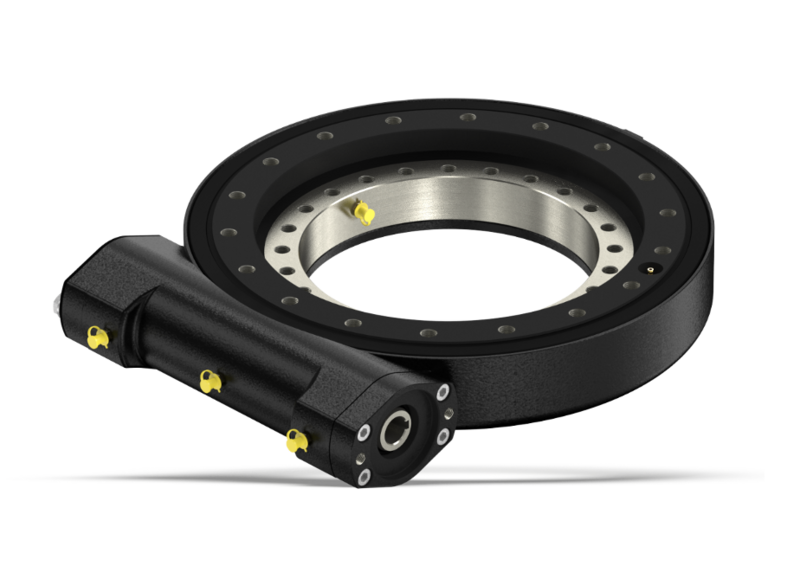

Hydraulic slewing ring 1:124 outer diameter 670mm

Hydraulic slewing ring 1:124

• Suitable for MP series and MR series hydraulic motors

Technical specifications:

• Torque ratio: 124:1
• Efficientë`;ntion: 40%
• Self-braking: Yes
• freedom of play: `;<`;0.17º`;
• Maximum torque: 23500 Nm
• Rated torque: 21000 Nm
• Holding torque: 25.4 kNm
• Tipping moment: 203.4 kNm
• Radial static load: 675 kN
• Axial static load: 1808 kN
• Radial dynamic load: 251 kN
• Axial dynamic load: 293 kN
• Outer diameter: 670mm
• European manufacture
