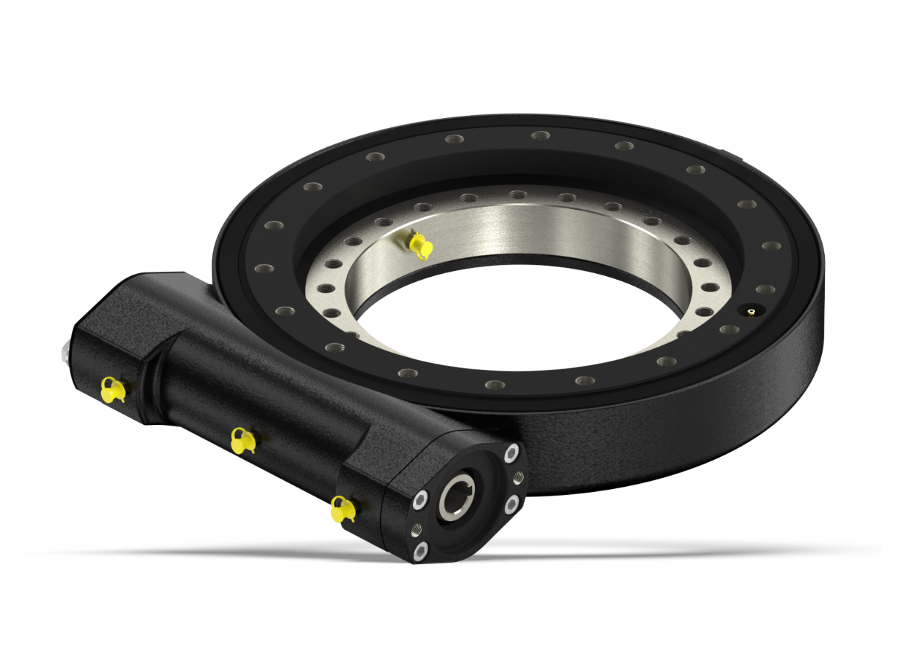

Hydraulic slewing ring 1:44 outer diameter 270mm

Hydraulic slewing ring 1:44 outer diameter 270mm

• Suitable for MP series and MR series hydraulic motors

Technical specifications:

• Torque ratio: 44:1
• Efficientë`;ntion: 40%
• Self-braking: Yes
• freedom of play: `;<`;0.15º`;
• Maximum torque: 6500 Nm
• Rated torque: 3380 Nm
• Holding torque: 25 kNm
• Tipping moment: 11.2 kNm
• Radial static load: 94 kN
• Axial static load: 290 kN
• Radial dynamic load: 83 kN
• Axial dynamic load: 97 kN
• Outer diameter: 270mm
• European manufacture

*Ts slewing ring can rotate 360°`; degrees rotate freely
