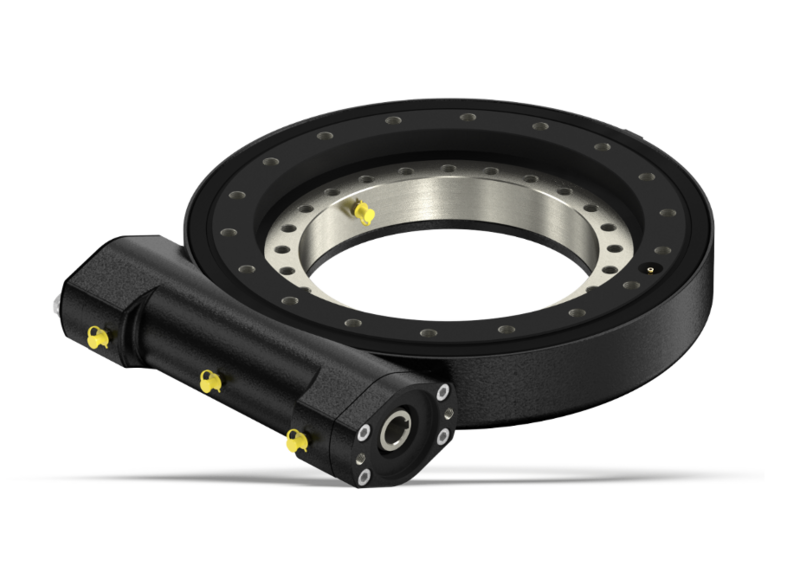

Hydraulic slewing ring 1:61 outer diameter 370mm
€1,508.06
In stock
Hydraulic slewing ring 1:61 outer diameter 370mm
Technical specifications:
- Torque ratio: 61:1
- Efficientë`;ntion: 40%
- Self-braking: Yes
- freedom of play: `;<`;0.10º`;
- Maximum torque: 9100 Nm
- Rated torque: 4480 Nm
- Holding torque: 34 kNm
- Tipping moment: 27.5 kNm
- Radial static load: 204 kN
- Axial static load: 547 kN
- Radial dynamic load: 132 kN
- Axial dynamic load: 154 kN
- Outer diameter: 370mm
- European manufacture
- Weight: 45.68kg
