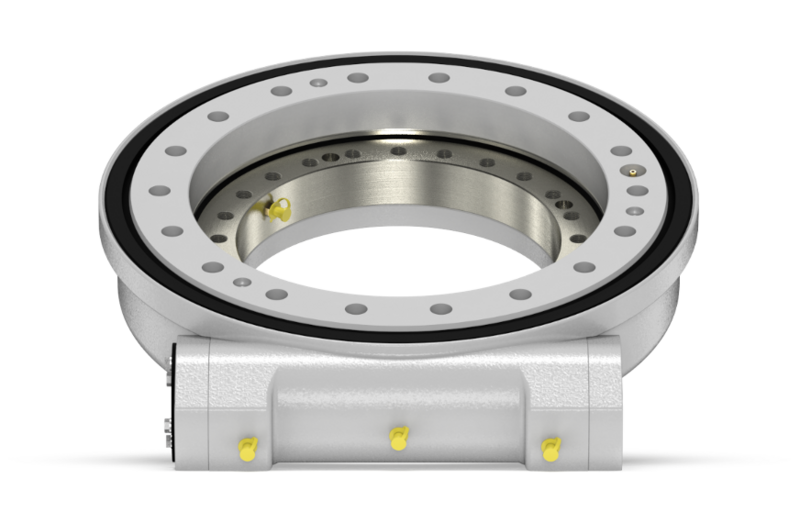

Hydraulic slewing ring 1:62 outer diameter 188mm
€1,105.04
In stock
Hydraulic slewing ring 1:62 outer diameter 188mm
- Ts slewing ring is suitable for t MM engines
Technical specifications:
- Torque ratio: 62:1
- Efficientë`;ntion: 30%
- Self-braking: Yes
- freedom of play: `;<`;0.26º`;
- Maximum torque: 1200 Nm
- Rated torque: 600 Nm
- Holding torque: 5 kNm
- Tipping moment: 7.1 kNm
- Radial static load: 64 kN
- Axial static load: 84 kN
- Radial dynamic load: 75 kN
- Axial dynamic load: 98 kN
- Outer diameter: 188mm
- European manufacture
- Weight: 14 kg
