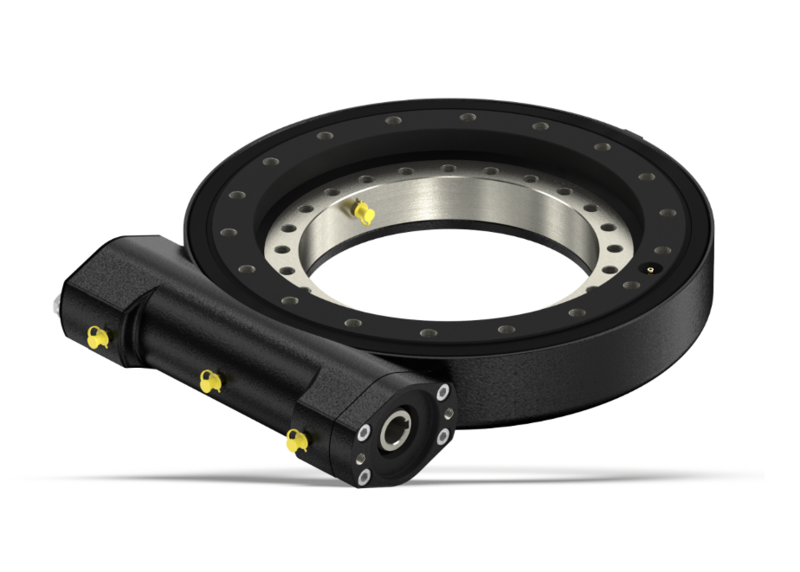

Hydraulic slewing ring 1:85 outer diameter 470mm

Hydraulic slewing ring 1:85

• Suitable for MP series and MR series hydraulic motors

Technical specifications:

• Torque ratio: 85:1
• Efficientë`;ntion: 40%
• Self-braking: Yes
• freedom of play: `;<`;0.17º`;
• Maximum torque: 12308 Nm
• Rated torque: 10200 Nm
• Holding torque: 39 kNm
• Tipping moment: 71.1 kNm
• Radial static load: 338 kN
• Axial static load: 905 kN
• Radial dynamic load: 157 kN
• Axial dynamic load: 183 kN
• Outer diameter: 470mm
• European manufacture
• Weight: 61.73kg
