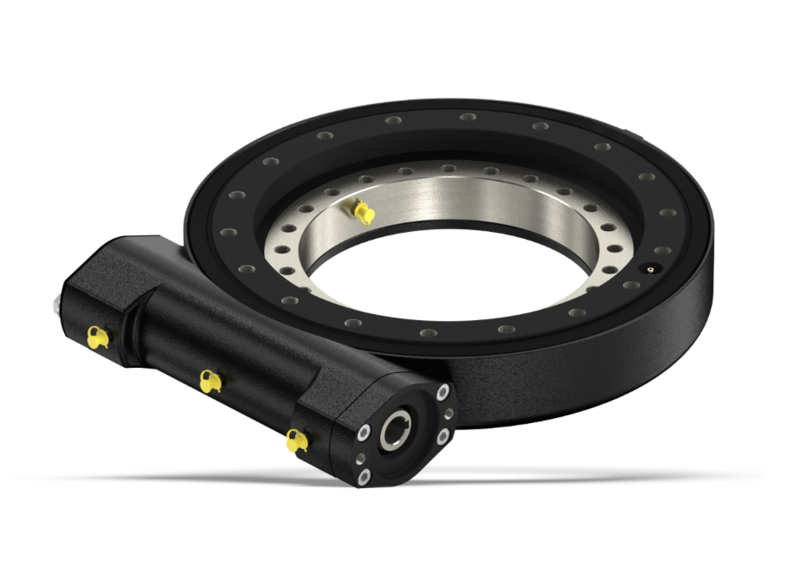

Hydraulic slewing ring 1:92 outer diameter 612mm
€2,470.00
In stock
Hydraulic slewing ring 1:92 outer diameter 612mm
Technical specifications:
- Torque ratio: 92:1
- Efficientë`;ntion: 40%
- Self-braking: Yes
- freedom of play: `;<`;0.17º`;
- Maximum torque: 30000 Nm
- Rated torque: 25000 Nm
- Holding torque: 35.5 kNm
- Tipping moment: 203.4 kNm
- Radial static load: 675 kN
- Axial static load: 1808 kN
- Radial dynamic load: 251 kN
- Axial dynamic load: 293 kN
- Outer diameter: 612mm
- European manufacture
- Weight: 109.55kg
