Hydraulic level system 4 level cylinders 24V
Hydraulic level system 4 level cylinders 24V

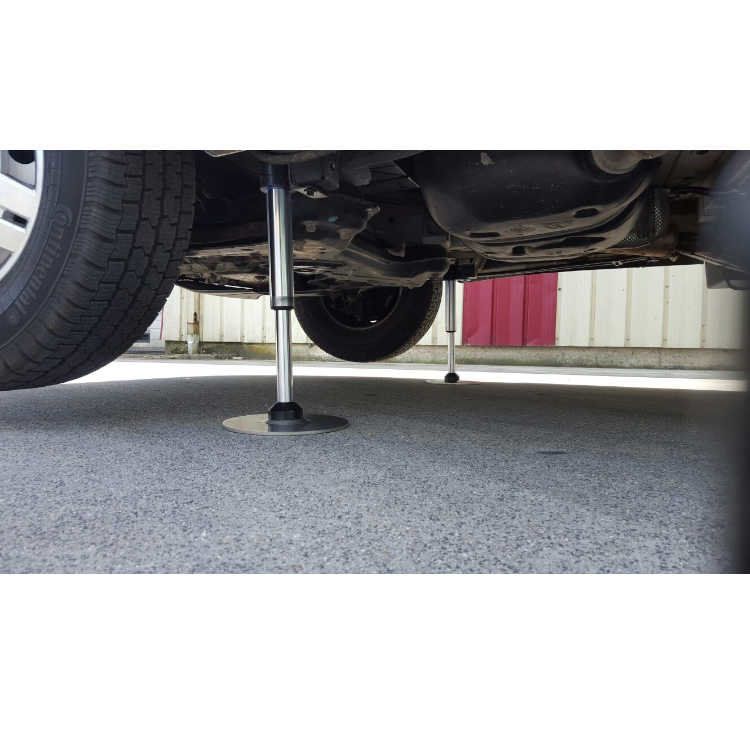

Professional double-acting level system with 4 telescopic cylinders to make your vehicle stable with a few pushes of a button. Leveling your camper or other vehicle becomes very easy and without heavy work with this level system. The level system is suitable for almost all surfaces thanks to the large stainless steel foot under the cylinders.
This system is universal and comes with compact telescopic cylinders that require some installation space (355 mm) to install under the vehicle. Of course, this set is also suitable for leveling trailers, horseboxes or other vehicles. The maximum load capacity of this standard set is 4000 kg.
The set is delivered completely custom-made and consists of:
- 24V / 0.8KW Hydropack power pack with 4x 24V control valve and 4 liter steel tank
- 0.25cc pump (0.6 l/min)
- Max. pressure: 220 bar
- 4 x PTM double-acting telescopic cylinders with an installation dimension of 355 mm and a stroke of 360 mm including base and mounting
- Complete connection package with hydraulic hoses, controlled non-return valves and couplings
- Push button box to operate the two telescopic cylinders separately
Weight:
- Powerpack approx. 17 kg
- Support leg cylinders approx. 7.5 kg each
Possible options:
- Wireless remote control
- H46 hydraulic oil
- Other cylinder size
- More telescopic cylinders
- Greater lifting capacity
After ordering the level system, one of our hydraulic specialists will contact you to configure the set correctly for your vehicle. We can adjust these sets to your wishes in consultation. If you need expert advice from one of our specialists in advance or want to add more options to your level system, please feel free to contact us.
*This product is without assembly. This must be done by the customer himself or by a camper garage.
