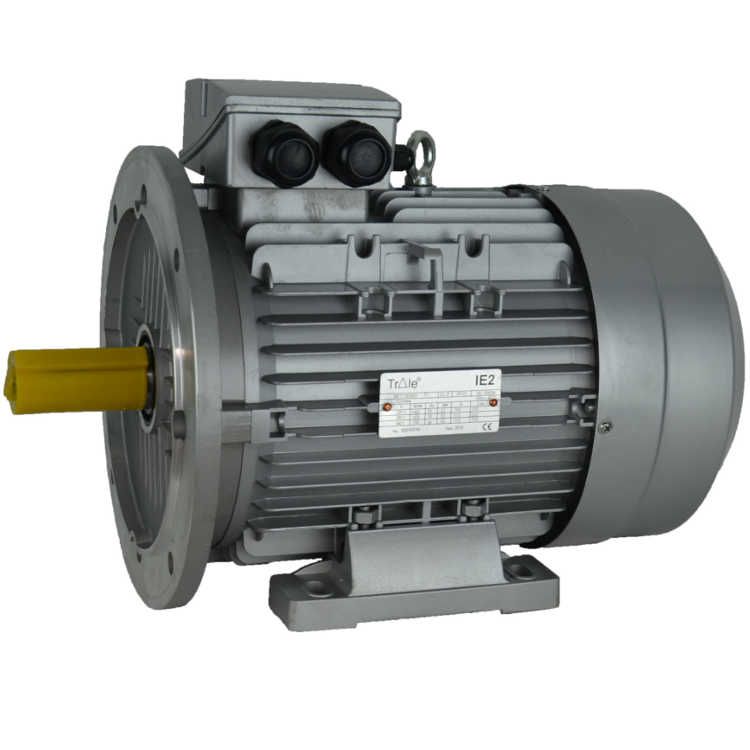

IE2 Electric Motor 11 kW 230/400 Volt Foot Flange Mount B3-B5 1500 RPM with Small Housing
€729.86
In stock
IE2 Electric Motor 11 kW 230/400 Volt Foot Flange Mount B3-B5 1500 RPM with Small Housing
- This variant has a smaller house than the other variants
- Extremely suitable as an engine for a hydraulic power unit
- To be used in combination with a lantern piece
- Equipped with mounting bracket (B3)
Technical features:
- Type: IE2-MS 132 L2
- Build Size: 132L
- Voltage: 230/400 Volts (50 Hz) / 440 Volts (60 Hz)
- Power: 11 kW / 15 hp
- Shaft: 38mm with keyway
- Flange diameter: 300mm
- Torque: 49.3 Nm
- Speed: 1455RPM
- Noise level: 72dB
- Weight: 58.6 kg
- Foot type: B3
- Flange type: B5
- For further specifications see spec sheet 1.
Dimensions technical drawing (in mm):
| Size: | Size: | Size: | |||
| a | 216 | d | 38 | m | 265 |
| AA | 255 | SS | M12 | N | 230 |
| AC | 270 | E | 80 | p | 300 |
| B | 178 | f | 10 | s | 15 |
| C | 89 | G | 33 | T | 4.0 |
| huh | 132 | ||||
| HD | 325 | ||||
| k | 12 | ||||
| KK | M25x1.5 | ||||
| l | 525 |
For further detailed technical drawing see spec sheet 2.
