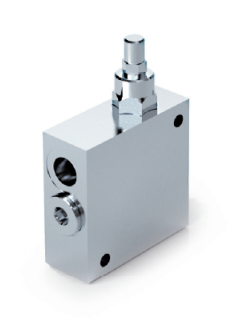

Rapid passage valve for cylinder 1/2" BSP 60 l/min

Rapid passage valve for cylinder 1/2" BSP 60 l/min

• Purpose: Used to accelerate the cylinder
• Also known as: differential valve
• Unit: per piece
• Brand: Oleodinamica Marchesini

Technical specifications:

• Connection: 1/2" BSP
• Maximum capacity: 60 l/min
• Maximum pressure: 350 bar
• Pressure range: 50 - 350 bar
• Pilot ratio: 1:4.5
• Art. code: V1220
• Material: steel

Technical specifications:

• Dimension L: 90 mm
• Dimension L1: 4 mm
• Dimension L2: 10 mm
• Dimension L3: 70 mm
• Dimension L4: 49.5 mm
• Dimension L5: 30 mm
• Dimension L6: 16 mm
• Dimension L7: 70 mm
• Dimension L8: 12 mm
• Dimension L9: 21 mm
• Dimension L10: 50 mm
• Dimension H: 92 mm
• Dimension H1: 142 mm
• Size S: 35 mm
