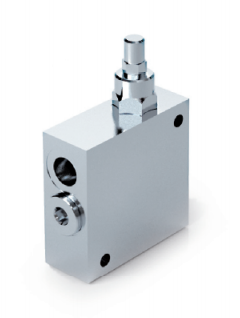

Rapid passage valve for cylinder 3/4" BSP 95 l/min

Rapid passage valve for cylinder 3/4" BSP 95 l/min

• Purpose: Used to accelerate the cylinder
• Also known as: differential valve
• Unit: per piece
• Brand: Oleodinamica Marchesini

Technical specifications:

• Connection: 3/4" BSP
• Maximum capacity: 95 l/min
• Maximum pressure: 350 bar
• Pressure range: 60 - 350 bar
• Pilot ratio: 1:5.5
• Art. code: V1230
• Material: steel

Technical specifications:

• Dimension L: 105 mm
• Dimension L1: 4 mm
• Dimension L2: 10 mm
• Dimension L3: 85 mm
• Dimension L4: 59 mm
• Dimension L5: 36 mm
• Dimension L6: 20 mm
• Dimension L7: 85 mm
• Dimension L8: 12 mm
• Dimension L9: 22 mm
• Dimension L10: 62 mm
• Dimension H: 120 mm
• Dimension H1: 177 mm
• Size S: 40 mm
