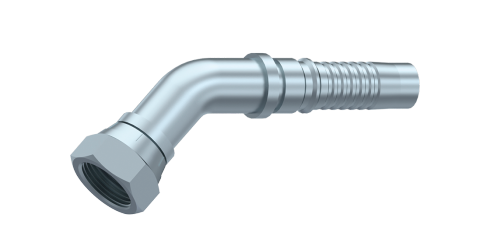

Interlock elbow coupling 45º 3/4" BSP with swivel + o.ring

Interlock elbow coupling 45º 3/4" BSP with swivel + o.ring

• Inner cone: 60º
• Material: steel

Technical specifications:

• Dimension DN: 3/4"
• Dimension R1: 3/4" BSP
• Dimension L: 136 mm
• Dimension L1: 66mm
• Dimension L2: 30 mm
• Dimension HEX 1: 32 mm
• Dimension ØC: 14 mm
