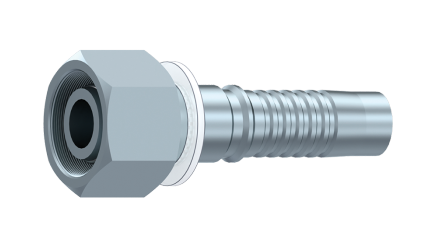

Interlock press coupling 1" DN female M42x2 - 30S with gland and o-ring

• Material: steel

Technical specifications:

• Dimension DN: 1"
• Dimension ØD1: 30 mm
• Series: S
• Dimension R1: M42x2
• Dimension L: 121 mm
• Dimension L1: 79.5 mm
• Dimension HEX 1: 50 mm
• Dimension ØC: 19 mm
