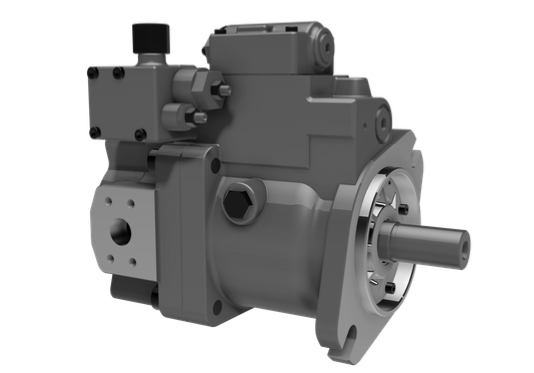

K3VL Kawasaki axial piston pump 45cc

K3VL Kawasaki axial piston pump 45cc

Technical specifications:

• Original code: K3VL45/B-1NRSM-L1/1-H4
• Maximum displacement: 45 cm3/rev
• Temperature range: -20°C to +95°C
• Extension for second pump: single pump with steel casing
• Circuit type: open circuit
• Direction of rotation: right (clockwise)
• Mounting flange & shaft: SAE Spline & mounting
• Thread type: metric
• Speed power max.: 2700 rpm
• Pressure: 320 bar continuous
• Pressure: 350 bar peak pressure
• Weight: 27 kg
• Brand: Kawasaki

Datasheet:

All technical details are available in this K3VL datasheet
