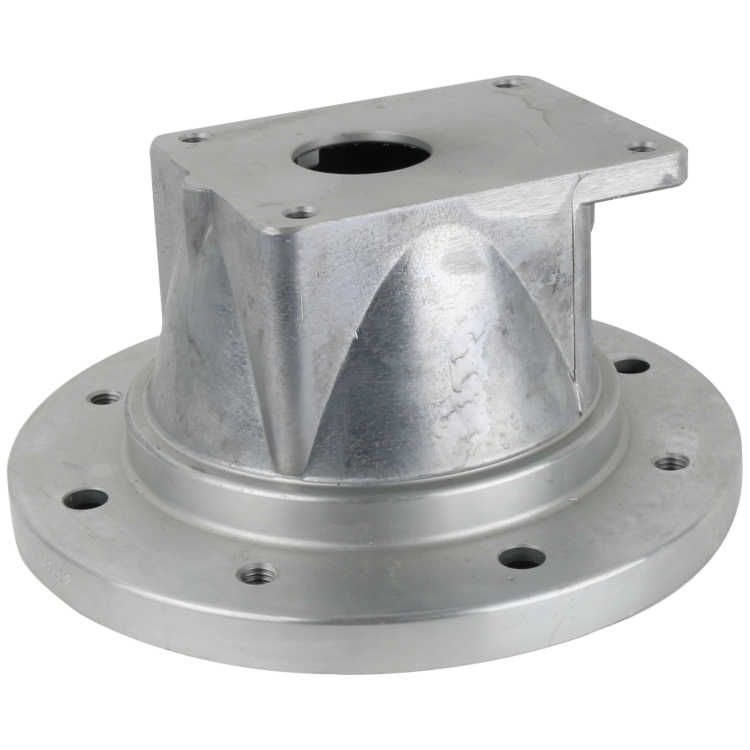

Lantern Piece Group 2, Flange 350mm
€131.85
In stock
Lantern Piece Group 2, Flange 350mm
- Material: aluminum
- Type: group 2
Technical features:
- Engine flange: 350mm
- Engine power: 11/22 kW (15/30HP)
- Pump group: 2
- Fitting edge: 36.4mm
- Pump flange, center distance, mounting holes on the long side: 95 mm
- Pump flange, center distance, mounting holes on the short side: 70 mm
- Dimension ØA : 350mm
- Dimension ØW: 300mm
- Dimension C: 250mm
- Dimension ØD: 18mm
- Dimension F: 253mm
- Dimension ØP: - mm
- Dimension G: 178mm
- Dimension H: 25mm
- Dimension Q: - mm
- Dimension R: - mm
- Dimension S: - mm
