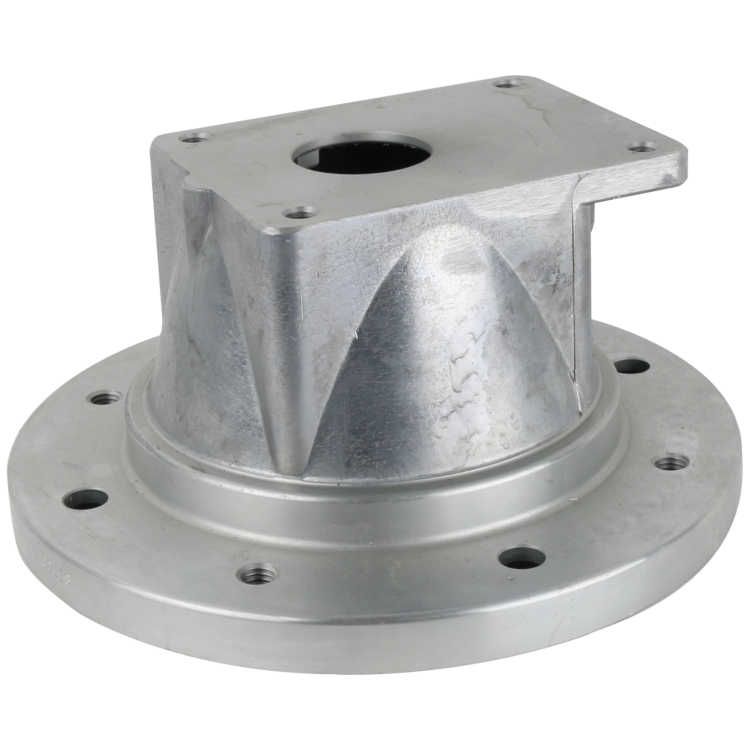

Lantern Piece Group 3, Flange 300mm
€64.06
In stock
Lantern Piece Group 3, Flange 300mm
- Material: aluminum
- Type: Group 3 (B5)
Technical features:
- Engine flange: 300mm
- Engine power: 5,505 / 9,175 kW (7.5/12.5HP)
- Pump group: 3
- Fitting edge: 50.8mm
- Pump flange, center distance, mounting holes on the long side: 72 mm
- Pump flange, center distance, mounting holes on the short side: 52 mm
- Dimension ØA : 300mm
- Dimension ØW: 265mm
- Dimension C: 230mm
- Dimension ØD: 14mm
- Dimension ØF: 238mm
- Dimension ØP: M12
- Dimension G: 143mm
- Dimension H: 21mm
- Dimension Q: 170mm
- Dimension R: 120mm
- Dimension S: 59mm
