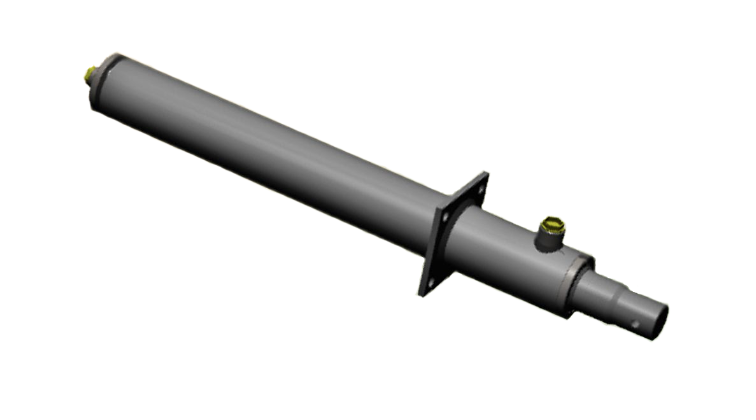

Log splitter cylinder 50x70x550mm with rectangular flange
Technical specifications:
- Rod Dimension ØA: 50mm
- Bore Dimension Øb: 70mm
- Stroke Z dimension: 550mm
- Dimension E: 767mm
- Dimension G: 170mm
- Dimension I: 103mm
- Dimension J: 90mm
- Dimension K: 120mm
- Dimension ØL: 13mm
- Dimension M: G 1/2"
- Operating pressure: 200 bar
- Max. tonnage: 7.8 tons
- Weight: 19.65kg
