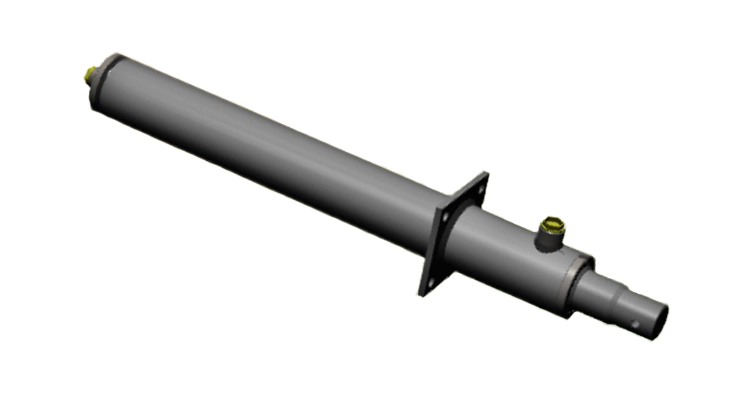

Log splitter cylinder 70x90x650mm with rectangular flange
Technical specifications:
- Rod Dimension ØA: 70mm
- Bore Dimension Øb: 90mm
- Stroke Dimension: 650mm
- Dimension E: 878mm
- Dimension G: 170mm
- Dimension I: 112mm
- Dimension J: 100mm
- Dimension K: 160mm
- Dimension ØL: 15mm
- Dimension M: G 3/4"
- Operating pressure: 200 bar
- Max. tonnage: 12 tons
- Weight: 44.00 kg
