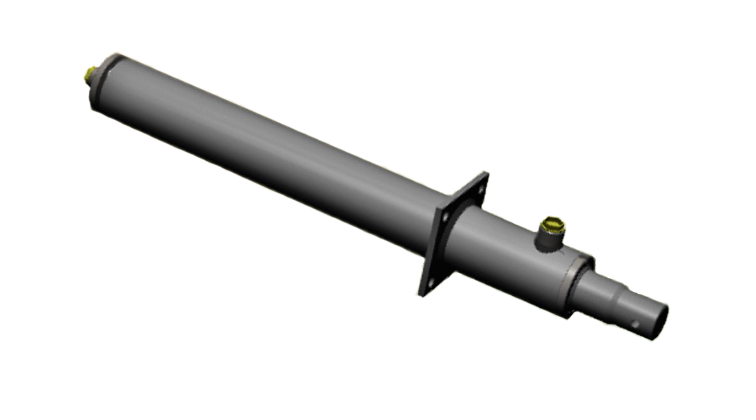

Log splitter cylinder 80x110x750mm with rectangular flange
Technical specifications:
- Rod Dimension ØA: 80mm
- Bore Dimension Øb: 110mm
- Stroke Dimension: 750mm
- Dimension E: 1055mm
- Dimension G: 170mm
- Dimension I: 152mm
- Dimension J: 150mm
- Dimension K: 200mm
- Dimension ØL: 16.5mm
- Dimension M: G 3/4"
- Operating pressure: 200 bar
- Max. tonnage: 19 tons
- Weight: 76.05kg
