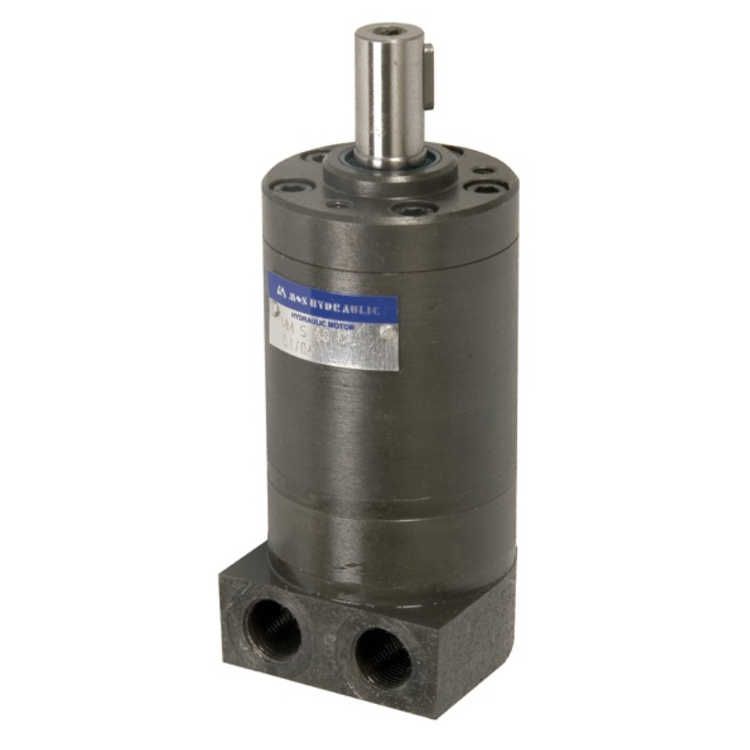

MM20 20cc hydraulic engine 16mm shaft, side connection

MM20 20cc hydraulic engine 16mm shaft, side connection

Technical specifications:

• Model: MOMM20 S
• Dimension R1: 3/8" BSP
• max. liters per minute: 20 l/min
• Nominal pressure: 100 bar
• max pressure: 200 bar
• Stroke volume: 20 cc
• max speed constant: 1000RPM
• max speed peak: 1250RPM
• nom. torque: 25 Nm
• max torque: 51 Nm
• max. power constant: 2.4 kW
• Dimension L1: 8.5mm
• Dimension L: 110mm
• Other specifications: see attachment
