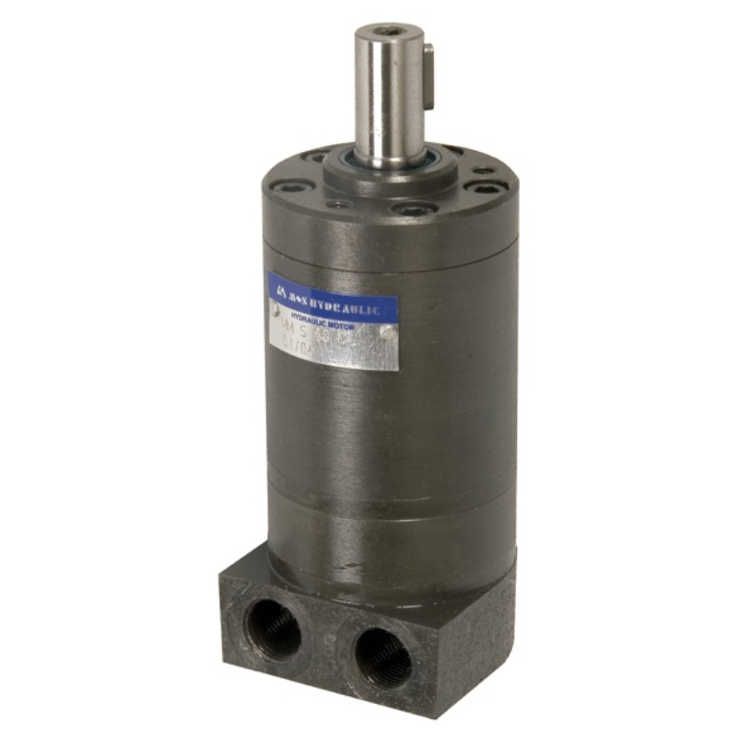

MM40 40cc Hydraulic Motor 16mm Shaft, Side Connection

MM40 40cc Hydraulic Motor 16mm Shaft, Side Connection

Technical specification:

• Model: MOMM40 S
• Dimension R1: 3/8" BSP
• max. liters per minute: 20 l/min
• Nominal pressure: 90 bar
• max pressure: 160 bar
• Stroke volume: 40 cc
• max speed constant: 500RPM
• max speed peak: -
• nom. torque: 45 Nm
• max torque: 82 Nm
• max. power constant: 2.4 kW
• Dimension L1: 17mm
• Dimension L: 117.5mm
• Other specifications: see attachment
